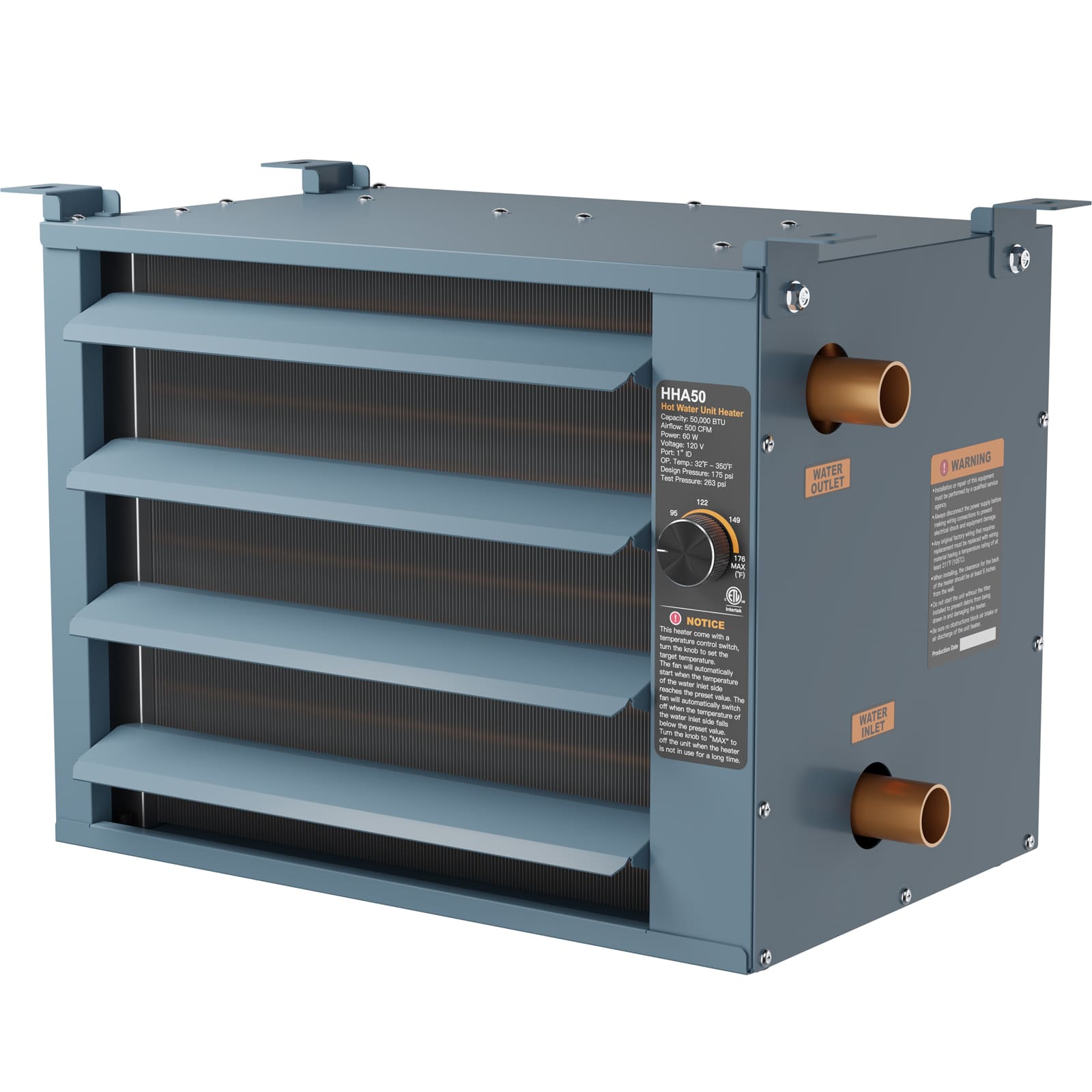

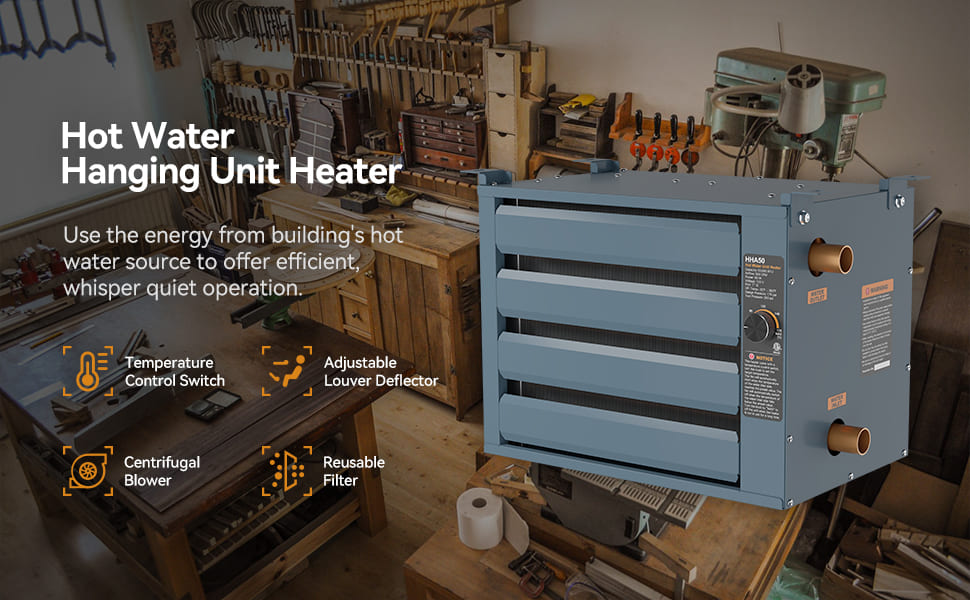

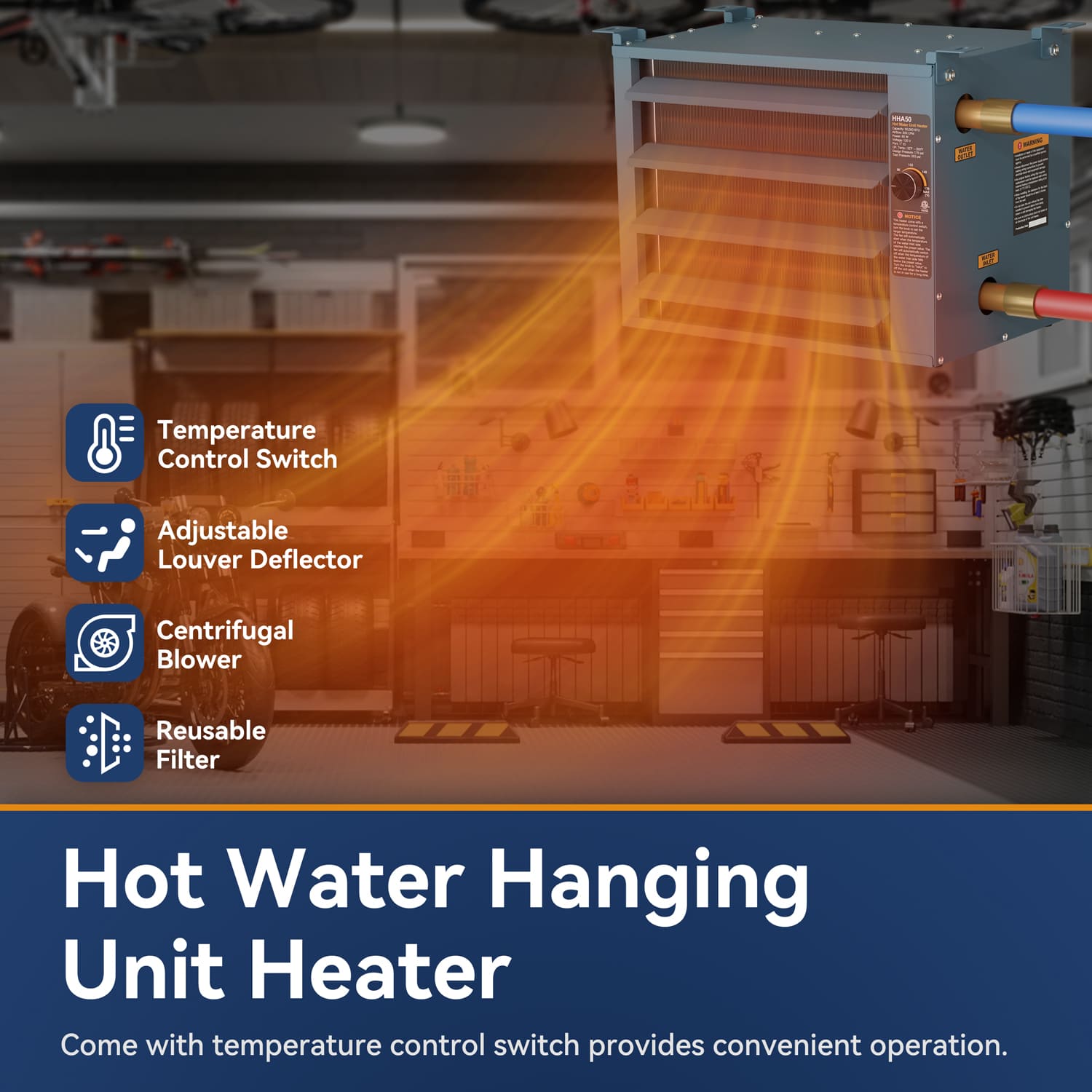

50,000 BTU Hydronic Hot Water Hanging Unit Heater

Water to Air Heat Exchanger with Fan for Outdoor Wood Furnaces, Garage, Warehouse and Greenhouse Heating, with Temperature Control Switch.



SKU:  HHA50

Applications

  • 【Outstanding Performance】HAMAOM hot water hanging unit heater uses the energy from a building’s hot water source(outdoor wood boilers) to offer efficient, whisper quiet operation, and comes with the temperature control switch, sensing the temperature of the water inlet to control the fan start/off, provide a simple way to set your desired temperature, maximize room comfort and energy-saving efficiency.

Main Function

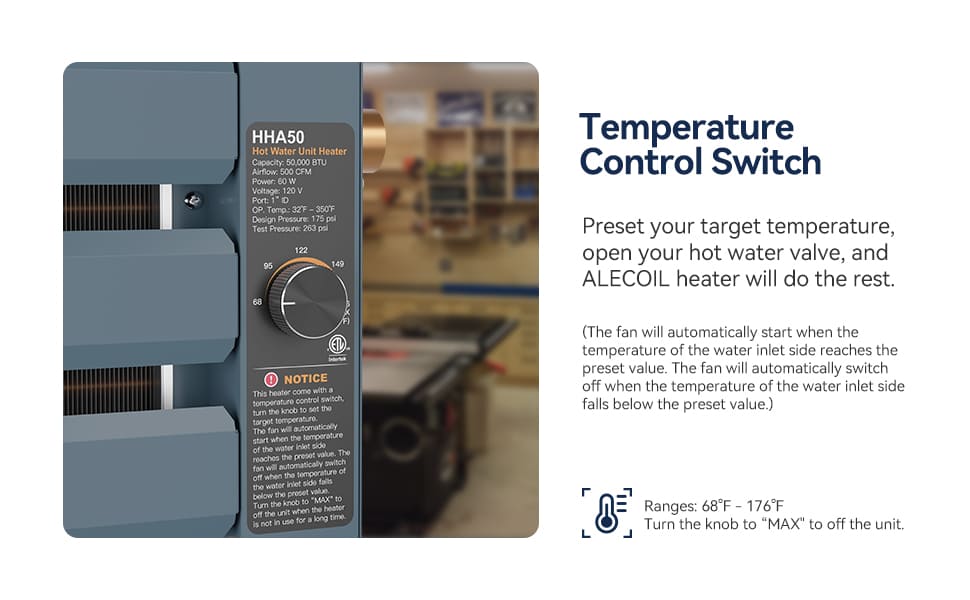

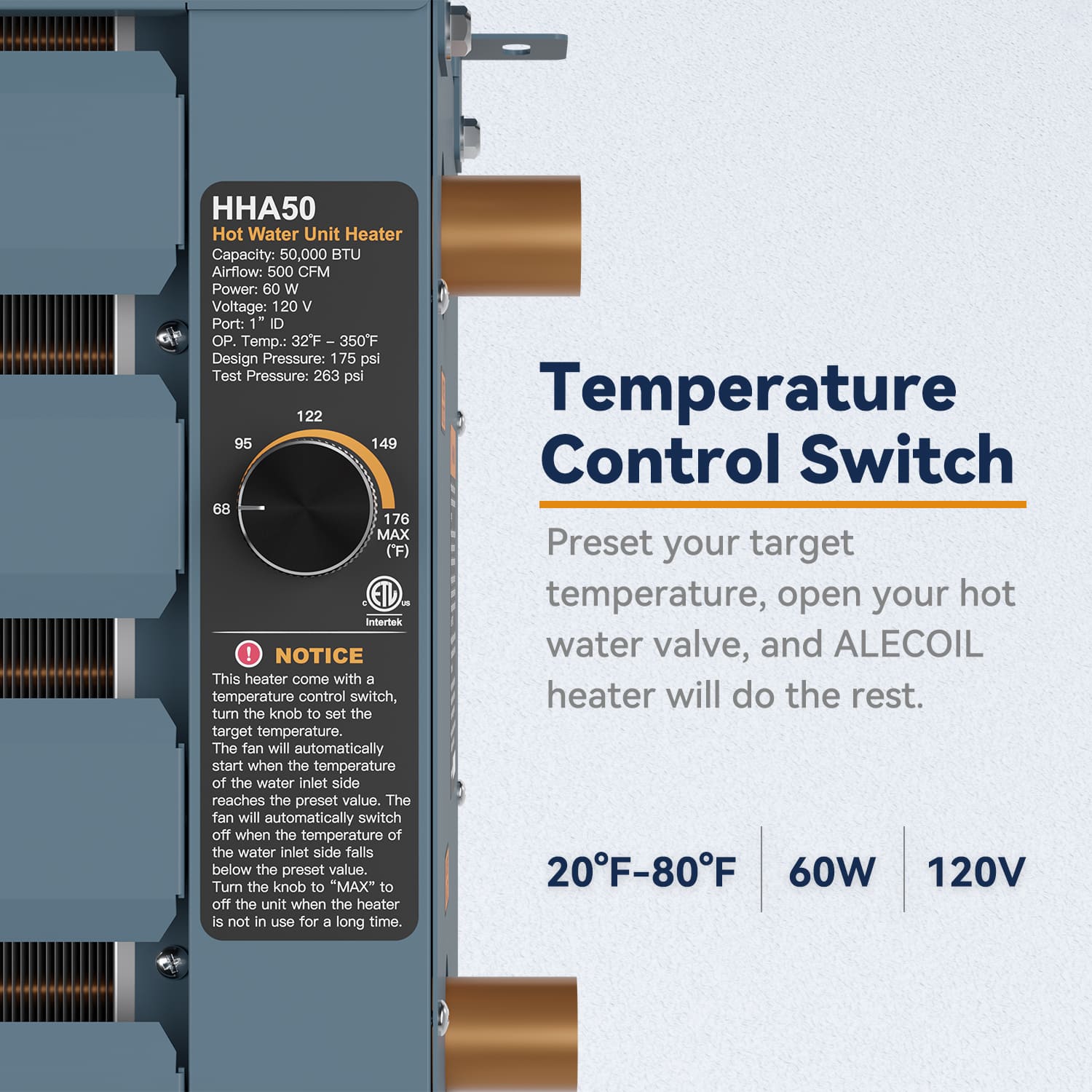

【Temperature Control Switch】This cleverly designed hanging unit heater comes with temperature control switch. Which automatic start the fan when the water inlet side temperature reaches the preset value, and automatic off the fan when the water inlet side temperature below the preset value. Once you have set the target temperature, you can easily open the hot water valve only, HAMAOM heater will does the rest.

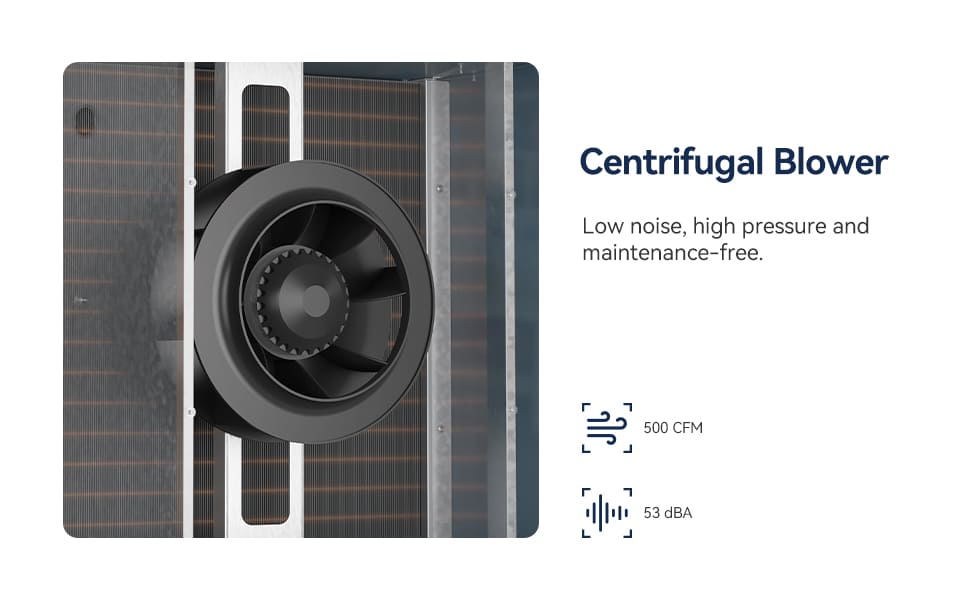

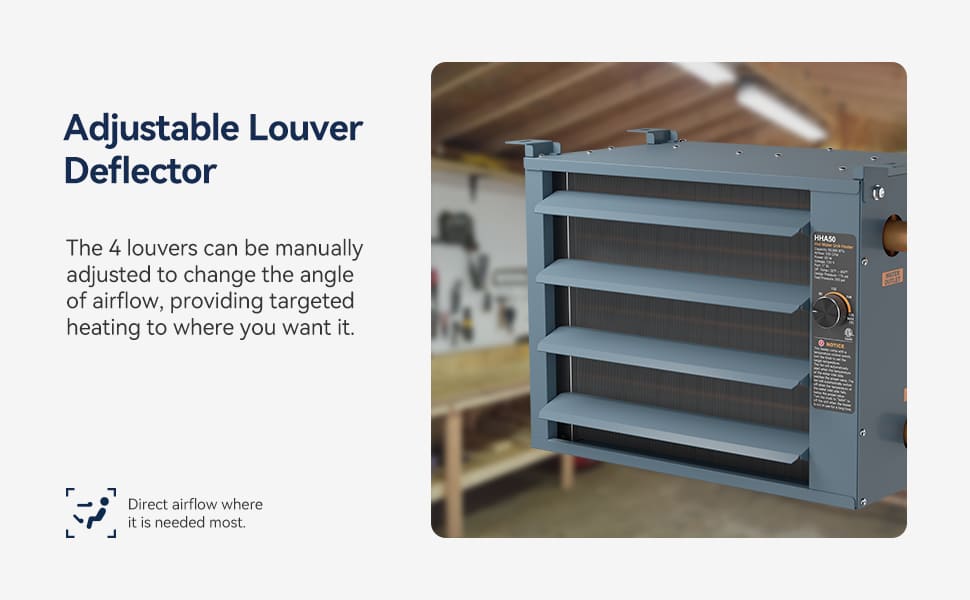

  • 【Whisper & Adjustable Directional Airflow】The unit uses centrifugal blower, which has the characteristics of low noise, high pressure and maintenance-free. Also comes with adjustable louver deflector to direct airflow where it is needed most.



  • 【Easy to Install】The unit comes with mounting brackets and power cord, provides fast & trouble-free installation to ensure your installation as easy as possible, reduce your cost of use.



  • 【Trusted Quality】The housing and core components are made of painted galvanized steel and to prevent rust. Also included a reusable filter to protect the internal parts of the unit, extend the life of the heater. We confident in the quality and construction of each HAMAOM products, ensure that all of our products are produced and certified to regional, national and international industry standards.

Video Introducing

Installation and Manual

HHA50HHA100HHA50-BHHA100-B
Capacity50,000 BTU100,000 BTU50,000 BTU100,000 BTU
Airflow500 CFM1500 CFM500 CFM1500 CFM
Power60 W130 W60 W130 W
Noise53 dBA65 dBA53 dBA65 dBA
Port1"1"1"1"

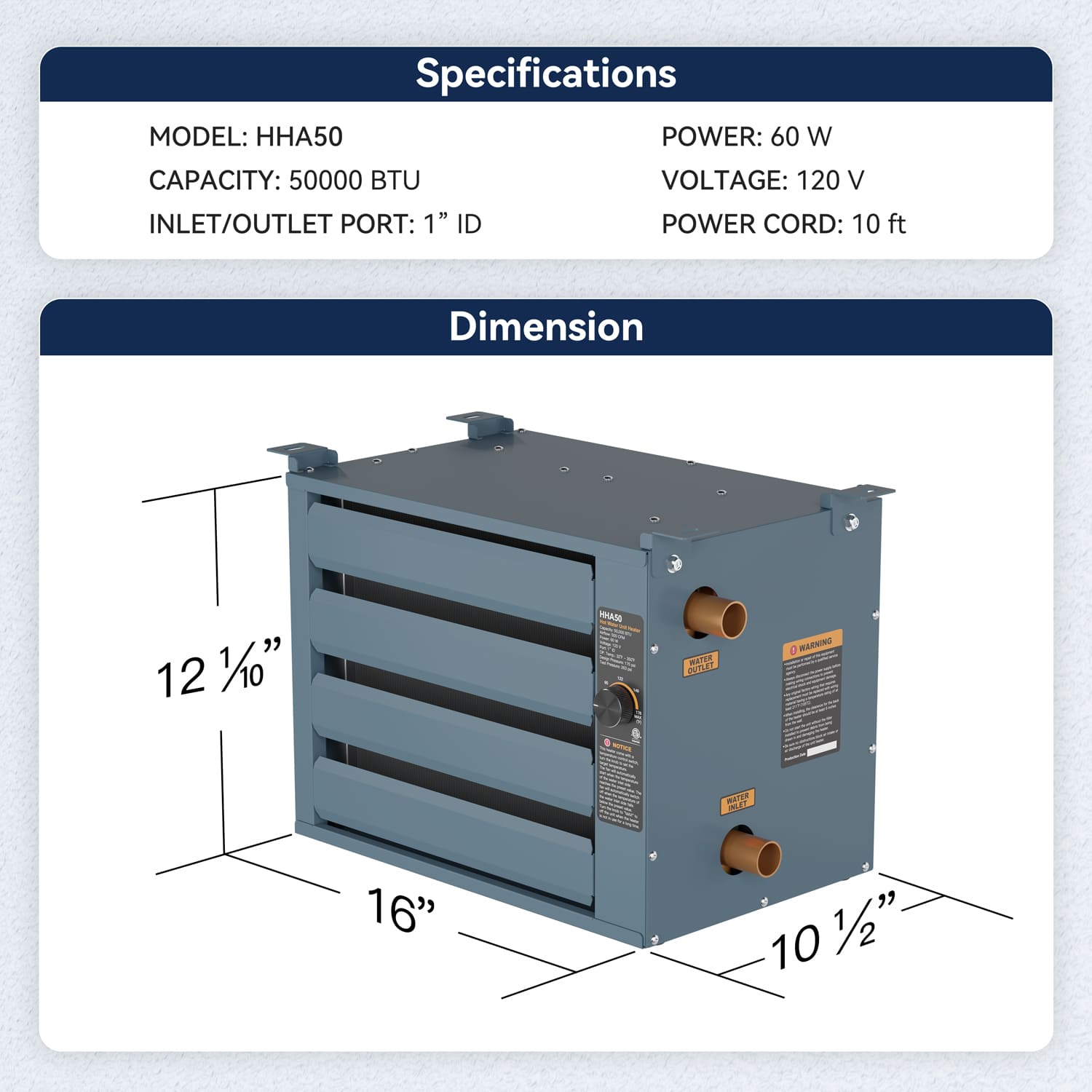

Dimensions18.5" x 10.5" x 12.9"22.6" x 10.5" x 16.9"18.5" x 10.5" x 12.9"22.6" x 10.5" x 16.9"
Weight24.5 lb39.5 lb24.5 lb39.5 lb
